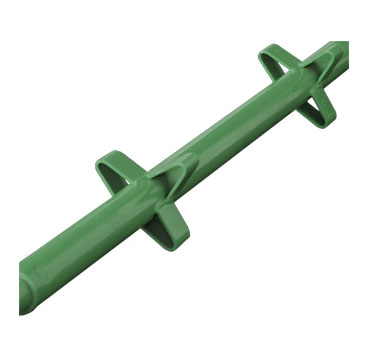

Kwikstage Vertical

Item Code Length in Mtr. Length in Feet Weight in Kg
JE-701-A 1.0 3.3 6.2
JE-701-B 2.0 6.6 11.7
JE-701-C 2.5 8.2 14.4
JE-701-D 3.0 9.8 17.2

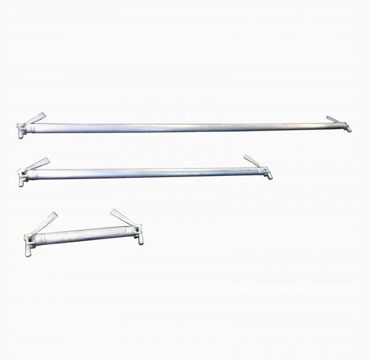

Kwikstage Ledger

Item Code Length in Mtr. Length in Feet Weight in Kg
JE-702-A 1.2 3.9 5.5
JE-702-B 1.8 5.9 6.9
JE-702-C 2.4 7.9 8.8

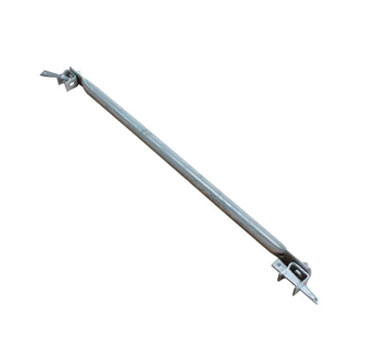

Kwikstage Brace

Item Code Size in Mtr. Size in Feet Weight in Kg
JE-703-A 0.7*2.0 2.4*6.6 8.0
JE-703-B 1.4*2.0 4.6*6.6 8.8
JE-703-C 1.6*2.0 5.2*6.6 9.1
JE-703-D 2.0*2.0 8.9*6.6 10.1
JE-703-E 3.0*2.0 9.8*6.6 12.4

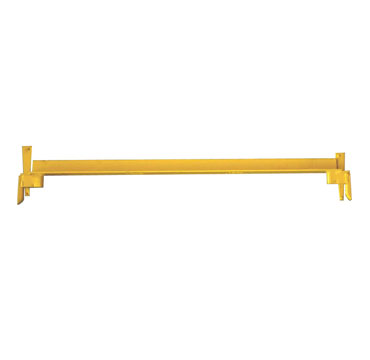

Kwikstage Transom

Item Code Length in Mtr. Length in Feet Weight in Kg
JE-704-A 0.80 2.6 5.9
JE-704-B 1.2 3.9 9.7
JE-704-C 1.8 5.9 13.1

Board Bracket

Item Code Length in Mtr. Length in Feet Weight in Kg
JE-705-A 0.2 0.8 1.8
JE-705-B 0.5 1.7 4.8
JE-705-C 0.7 2.4 8.3

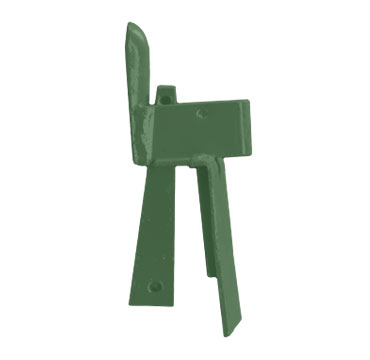

End Toe Board Bracket

Item Code Weight in Kg
JE-706-A 1.3

Kwikstage Accessories

V-Pressing

JE-707

Guiding Pin

JE-708

U-Clip

JE-709

Wedge/Pin

JE-710
